00-Size Guitars
From The Unofficial Epiphone Wiki
Contents |
Models
EL-00
- 2002-2012
- 00-Sized guitar
Body:
- Solid spruce top
- Mahogany body
- 15.5" body width
Neck:
- Set mahogany neck with "C" profile
- Hand-fitted dovetail neck joint
- Rosewood fingerboard with dot inlays
- Elongated headstock with no inlay
- 12" fingerboard radius
- 24.75" scale
- 1.65" nut width
Binding:
- 3-ply body binding
- Multi-ply 1-ring rosette
Hardware:
- Chrome or nickel hardware
- Rosewood non-belly bridge
- Compensated saddle
- Black bridge pins with white dots
- Tortoise pickguard with metal "E" emblem
- 14:1 ratio Grover tuners with small buttons
Colors:
- Vintage Sunburst
Jim Croce Elitist L-00
- 2003-2005
- Parlor sized body style
Body:
- Solid Spruce top
- Solid Mahogany back & sides
- 4.875" body depth
Neck:
- 1-pc set Mahogany neck with "V" profile
- Rosewood fingerboard with dot inlays
- Inlaid "Jim Croce" signature at 19th fret
- Tombstone headstock with pearl holly inlay
- 2-ply Elitist truss rod cover
- 25.5" scale
- 1.68" nut width
- Bone nut
Binding:
- 3-ply body
- Multi-ply 1-ring rosette
Hardware:
- Nickel hardware
- Die-cast Grover tuners
- Rosewwod bridge with no belly
- Black bridge pins with white dots
- Plastic tortoise pickguard
- Bone saddle
Colors:
- Vintage Sunburst (VS)
Jim Croce Elitist L-00 (Japan)
- 2003-2005
- Parlor sized body style
Body:
- Solid Spruce top
- Solid Mahogany back & sides
- 4.875" body depth
Neck:
- 1-pc set Mahogany neck with "V" profile
- Rosewood fingerboard with dot inlays
- Inlaid "Jim Croce" signature at 19th fret
- Open-book headstock with pearl holly inlay
- Open-book headstock with pearl no inlay (variation)
- 2-ply Elitist truss rod cover
- Bone nut
- 25.5" scale
- 1.68" nut width
Binding:
- 3-ply body binding
- Multi-ply 1-ring rosette
Hardware:
- Nickel hardware
- Bone saddle
- Die-cast Grover tuners
- Rosewwod bridge with no belly
- Black bridge pins with white dots
- Plastic tortoise pickguard
Colors:
- Vintage Sunburst (VS)
EL-00 (Japan)
- 00-Sized Parlor guitar
Body:
- Solid spruce top
- Mahogany body
- 15.5" body width
'Neck:
- Set mahogany neck with "C" profile
- Hand-fitted dovetail neck joint
- Elongated headstock with no inlay
- Rosewood fingerboard with dot inlays
- 12" fingerboard radius
- 24.75" scale
- 1.65" nut width
Binding:
- 3-ply body binding
- Multi-ply 1-ring rosette
Hardware:
- Chrome or nickel hardware
- Rosewood non-belly bridge
- Compensated saddle
- Black bridge pins with white dots
- Tortoise pickguard with metal "E" emblem
- 14:1 ratio Grover tuners with small buttons
Colors:
- Vintage Sunburst (VS)

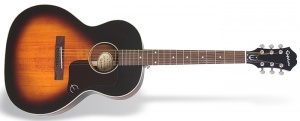

EL-00 PRO
|
| |
| Epiphone EL-00 PRO Controls
|

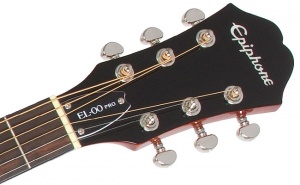

Epiphone EL-00 PRO Headstock
|
- 2013
- 00-sized guitar
Body:
- Solid spruce top
- Select Mahogany body
Neck:
- Mahogany neck with SlimTaper 'D' profile
- Rosewood fingerboard with 'mother-of-pearl' Dot inlays
- Sloped Dovewing headstock
- 12" fingerboard radius
- 19 medium frets
- 24.75" scale length
- 1.68" nut width
Binding:
- 3-ply Body binding on top
- 1-ply Body binding on back
- 1-ply Neck binding
Electronics:
- Fishman Sonicore undersaddle pickup
- Fishman Sonitone soundhole preamp
- Master Volume
- Master Tone
- 9V battery
- Endpin output jack
Hardware:
- Nickel hardware
- Straight Rosewood bridge with compensated saddle
- 14:1 ratio Grover tuners with mini buttons
Colors:
- Vintage Sunburst (VS)
EL-00 PRO Mahogany
|
| |
| Epiphone EL-00 PRO Controls
|
Epiphone EL-00 PRO Headstock
|
- 2016
- 00-sized guitar
Body:
- Solid Mahogany top
- Select Mahogany body
Neck:
- Mahogany neck with SlimTaper 'D' profile
- Rosewood fingerboard with 'mother-of-pearl' Dot inlays
- Sloped Dovewing headstock
- 12" fingerboard radius
- 19 medium frets
- 24.75" scale length
- 1.68" nut width
Binding:
- 3-ply Body binding on top
- 1-ply Body binding on back
- 1-ply Neck binding
Electronics:
- Fishman Sonicore undersaddle pickup
- Fishman Sonitone soundhole preamp
- Master Volume
- Master Tone
- 9V battery
- Heavy duty rim-mount output jack
Hardware:
- Nickel hardware
- Straight Rosewood bridge
- 14:1 ratio Grover mini-Rotomatics tuners
- Imitation bone nut
- Compensated imitation bone saddle
Colors:
- Vintage Sunburst (VS)
- Mahogany (MA)
- Ebony (EB)
