Epiphone ES
Epiphone ES-339

Contents

ES-135 Through 333

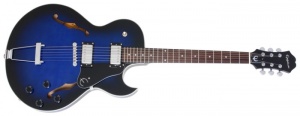

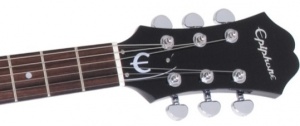

ES-135

Epiphone ES-135

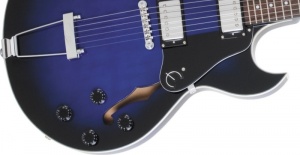

Epiphone ES-135 in Limited Edtion Blueburst
Epiphone ES-135
Epiphone ES-135 in Limited Edtion Blueburst
Epiphone ES-135
Epiphone ES-135 in Limited Edtion Blueburst

Body:

  • Single cutaway flourentine body
  • Laminated maple body
  • Chromyte center block

Neck:

  • Set maple neck
  • Rosewood fingerboard with dot inlays
  • 22 frets
  • 24.75" scale
  • 1.68" nut width

Binding:

  • Single-ply body
  • Unbound f-holes

Electronics:

  • "Patent Applied For" '57 humbucking pickups
  • 2 Vol. 2 Tone Controls
  • 3-way selector switch

Hardware:

  • Chrome hardware
  • Tune-o-matic bridge with Trapeze tailpiece
  • Grover tuners
  • Raised pickguard
  • Black speed knobs

Colors:

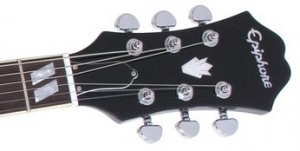

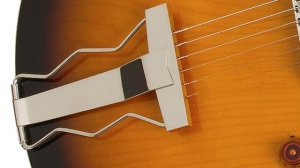

ES-175

Epiphone ES-175
Epiphone ES-175
Epiphone ES-175
Epiphone ES-175
Epiphone ES-175
Epiphone ES-175
Body:
  • Single cutaway florentine body
  • Laminated maple top, back and sides

Neck:

  • Set mahogany neck with SlimTaper "C" profile
  • Rosewood fingerboard with split parallelogram inlays
  • Elongated headstock with crown inlay
  • 12" fingerboard radius
  • 24.75" scale
  • 1.68" nut width

Binding:

  • Single-ply body & neck
  • Unbound f-holes

Electronics:

  • Alnico Classic humbucker pickups
  • 3-way selector switch
  • 2 Vol. 2 Tone Controls

Hardware:

  • Chrome or nickel hardware
  • Floating rosewood bridge base
  • Tune-o-matic bridge with Art Deco tailpiece
  • 3-ply Raised pickguard with metal "E" emblem
  • 16:1 ratio Grover die-cast tuners
  • Speed knobs

Colors:

  • Vintage Sunburst (VS)

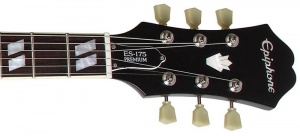

ES-175 Premium

Epiphone Premium
Epiphone ES-175 Premium
Epiphone Premium
Epiphone ES-175 Premium
* 2014 Epiphone Club Exclusive

Body:

  • Single cutaway florentine body
  • Laminated figured maple top
  • Maple back and sides
  • Vintage inspired "aged" lacquer

Neck:

  • Set mahogany neck with SlimTaper "C" profile
  • Rosewood fingerboard with split parallelogram inlays
  • Elongated headstock with crown inlay
  • 12" fingerboard radius
  • 24.75" scale
  • 1.68" nut width

Binding:

  • Single-ply body & neck

Electronics:

  • Gibson USA '57 Classic humbucker pickups
  • 2 Vol. 2 Tone Controls
  • 3-way selector switch

Hardware:'

  • Nickel hardware
  • Floating rosewood bridge base
  • Tune-o-matic bridge with Art Deco tailpiece
  • 3-ply Raised pickguard with metal "E" emblem
  • Vintage-style deluxe tuners
  • Gold reflector knobs

Colors:

  • Vintage Sunburst (VS)
  • Natural (NA)
  • Ebony (EB)
  • Wine Red (WR)


ES-295

Epiphone ES-295
Epiphone ES-295
Epiphone ES-295
Epiphone ES-295
Epiphone ES-295
Epiphone ES-295

Body:

  • Single cutaway florentine body
  • Laminated maple top & body

Neck:

  • Set Mahogany neck
  • Rosewood fingerboard with split parallelogram inlays
  • Pearl deco oval inlay on headstock
  • 20 frets
  • 24.75" scale
  • 1.68" nut width

Binding:

  • 3-ply body
  • 1-ply beck

Electronics:

  • Two P-90 single coil pickups
  • 2 Vol. 2 Tone Controls
  • 3-way selector switch

Hardware:

  • Chrome hardware
  • Tune-o-matic bridge on rosewood bridge base
  • Bigsby vibrato tailpiece
  • Deluxe vintage style tuners
  • Elevated pickguard with gold flower design
  • Gold speed knobs

Colors:

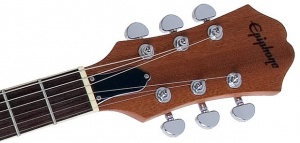

Tom Delonge ES-333

Epiphone Tom Delonge ES-333
Epiphone Tom Delonge ES-333
Epiphone Tom Delonge ES-333
Epiphone Tom Delonge ES-333
Epiphone Tom Delonge ES-333
Epiphone Tom Delonge ES-333
  • 2008-Current

Body:

  • Laminated maple/birch top, back, & sides

Neck:

  • Mahogany set neck with satin finish & 1960's SlimTaper "D" profile
  • Rosewood fingerboard with dot inlays
  • Natural finished headstock with black Epiphone logo

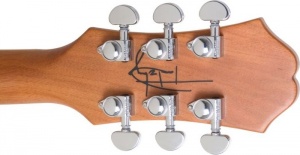

  • Tom DeLonge signature on back of headstock
  • 12" fingerboards radius
  • 22 medium-jumbo frets
  • 24.75" scale
  • 1.68" nut width

Binding:

  • Single-ply body & neck

Electronics:

  • 1 Gibson Dirty Fingers humbucker pickup
  • 1 volume control

Hardware:

  • Chrome or nickel hardware
  • LockTone Tune-O-Matic bridge with stopbar tailpiece
  • 16:1 ratio Grover die-cast tuners
  • Cream speed knob

Colors:

  • Brown (BR) with cream stripe



ES-335

ES-335 PRO

ES-335 PRO
Epiphone ES-335 PRO
ES-335 PRO
Epiphone ES-335 PRO
  • 2012

Body:

  • Semi-Hollow body construction
  • 5-ply laminated Maple/Birch Top & Back
  • 3-ply laminated Maple/Birch Sides

Neck:

  • Set Mahogany neck with 60's SlimTaper 'D' profile
  • Rosewood fingerboard with 'mother-of-pearl' small block inlays
  • 22 Medium-Jumbo frets
  • 12" fingerboard radius
  • Sloped Dovewing headstock with pearloid pineapple inlay
  • 24.75" scale lenth
  • 1.68" nut width

Binding:

  • Single-ply body & neck

Electronics:

  • 2 Epiphone Alnico V Classic PRO humbuckers
  • 2 Vol. 2 Tone controls
  • 3-way selector switch
  • Vol. controls with push/pull coil tapping

Hardware:

  • Nickel hardware
  • LockTone Tune-o-matic bridge with stopbar tailpiece
  • 14:1 ratio Vintage Wilkinson Classic tuners
  • Black TopHat knobs

Colors:

  • Natural (NA)
  • Iced Tea (IT)
  • Vintage Sunburst (VS)
  • Ebony (EB)
  • Cherry (CH)

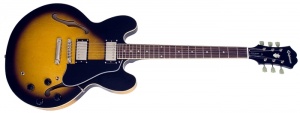

'59 ES-335 Dot

Epiphone 1959 ES-335 Dot
Epiphone 1959 ES-335 Dot
Epiphone 1959 ES-335 Dot
Epiphone 1959 ES-335 Dot Headstock
  • 2007 Limited Edition
  • Available only through Alliance of Independant Music Merchants dealers
  • Period correct label

Body:

  • Laminated maple body

Neck:

  • Set mahogany neck with 50's rounded profile
  • Rosewood fingerboard with dot inlays
  • "’59 ES-335 DOT" on truss rod cover
  • 24.75" scale
  • 1.68" nut width

Electronics:

  • Double wax potted Alnico Classic humbucker pickups

Hardware:

  • Nickel hardware
  • Grover tulip tuners
  • LockTone Tune-o-matic bridge and stopbar tailpiece
  • Bound finger board
  • Gibson-style pickguard

Colors:

  • Cherry (CH)
  • Ebony (EB)
  • Vintage Sunburst (VS)

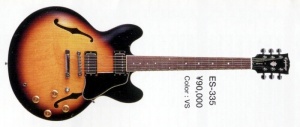

ES-335 Dot (Japan)

Epiphone ES-335 Japan
Epiphone ES-335 (Japan)

Body:

  • Laminated maple top, back & sides

Neck:

  • Set mahogany neck
  • Rosewood fingerboard with dot inlays
  • Open-book headstock
  • 24.75" scale
  • 1.68" nut width

Binding:

  • Single-ply body & neck

Electronics:

  • Two humbucker pickups
  • 2 Vol. 2 Tone controls
  • 3-way selector switch

Hardware:

  • Chrome hardware
  • Gold speed knobs
  • Tune-o-matic bridge with stopbar tailpiece

Colors:

  • Cherry (CH)
  • Vintage Sunburst (VS)

Model, Info & Pics

See Also:


ES-335 Block (Japan)

Epiphone ES-335 Block Japan
Epiphone ES-335 Block (Japan)

Body:

  • Laminated maple top, back & sides

Neck:

  • Set mahogany neck
  • Rosewood fingerboard with block inlays
  • Open-book headstock with crown inlay
  • 24.75" scale
  • 1.68" nut width

Binding:

  • Single-ply body & neck

Electronics:

  • Two humbucker pickups
  • 2 Vol. 2 Tone controls
  • 3-way selector switch

Hardware:

  • Nickel hardware
  • Reflector or top hat knobs
  • Vintage style deluxe tuners
  • Tune-o-matic bridge with stopbar tailpiece
  • 5-ply pickguard

Colors:

  • Cherry (CH)
  • Vintage Sunburst (VS)

See Also:


Elitist '63 ES-335 Dot

Epiphone Elitist '63 Dot
Epiphone Elitist '63 Dot
Epiphone Elitist '63 Dot
Epiphone Elitist '63 Dot Headstock
  • 2002-2008

Body:

  • Semi-hollowbody construction
  • 5-ply maple top, back & sides

Neck:

  • Set mahogany neck
  • Rosewood fingerboard with dot inlays
  • Bone nut
  • Tombstone headstock with holly inlay
  • Elite or Elitist logo on back of headstock
  • 2-ply truss rod cover with Elitist engraving
  • 24.75" scale
  • 1.625" nut width

Binding:

  • Single-ply neck & body
  • Unbound f-holes

Electronics:

  • USA 50SR & 50TR humbucker pickups
  • 2 Vol. 2 Tone controls
  • 3-way selector switch

Hardware:

  • Nickel hardware
  • Tune-o-matic bridge with stopbar tailpiece
  • 3-ply raised black pickguard
  • Die-cast 14:1 ratio Grover tuners
  • Gold reflector knobs

Colors:

  • Natural (NA)
  • Cherry (CH)
  • Vintage Sunburst (VS)

Includes:

  • Hardcase

See also: Elitist Archtops


Elitist '63 ES-335 Dot (Japan)

Epiphone Elite '63 ES-335 Dot
Epiphone Elitist '63 ES-335 Dot (Japan)
Epiphone Elite '63 ES-335 Dot
Epiphone Elitist '63 ES-335 Dot (Japan)
Epiphone Elitist Dot Headstock (Japan) Epiphone Elitist Dot Headstock (Japan)
Epiphone Elitist Dot Headstock (Japan)
Epiphone Elitist Dot Headstock (Japan)

Body:

  • 5-ply maple top, back & sides

Neck:

  • Set mahogany neck
  • Rosewood fingerboard with dot inlays
  • Bone nut
  • Open-book headstock with holly inlay
  • Elite or Elitist logo on back of headstock
  • 2-ply truss rod cover with Elitist engraving
  • 24.75" scale
  • 1.625" nut width

Binding:

  • Single-ply neck & body
  • Unbound f-holes

Electronics:

  • USA Classic humbucker pickups
  • 2 Vol. 2 Tone controls
  • 3-way selector switch

Hardware:

  • Nickel hardware
  • Tune-o-matic bridge with stopbar tailpiece
  • 3-ply raised black pickguard
  • Die-cast 14:1 ratio Grover tuners
  • Gold reflector knobs


Colors:

  • Cherry (CH)
  • Vintage Sunburst (VS)
  • Natural (NA)

Includes:

  • Hardcase

See also: Elitist Archtops (Japan)

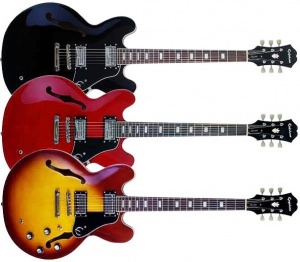

ES-335 Block

Epiphone ES-335 Block
Epiphone ES-335 Block
  • 2009 Limited Run
  • Available through AIMM only

Body:

  • Laminated maple body

Neck:

  • Set mahogany neck with SlimTaper profile
  • Rosewood fingerboard with small block inlays
  • Crown inlay on headstock
  • "ES-335" engraved on truss rod cover
  • 24.75" scale
  • 1.68" nut width

Binding:

  • Single-ply body & neck

Electronics:

  • Alnico Classic humbucker pickups
  • 2 Vol. 2 Tone controls
  • 3-way selector switch

Hardware:

  • Chrome hardware
  • LockTone Tune-o-matic bridge and stopbar tailpiece
  • Gibson-style pickguard
  • Black reflector knobs

Colors:

  • Cherry (CH)
  • Ebony (EB)
  • Iced Tea (IT)

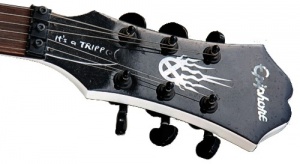

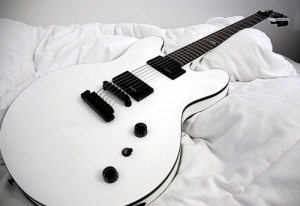

Tripp Eisen ES-335 Prototype

Epiphone Tripp Eisen ES-335 Prototype
Epiphone Tripp Eisen ES-335 Prototype
Epiphone Tripp Eisen ES-335 Prototype
Epiphone Tripp Eisen ES-335 Prototype
Epiphone Tripp Eisen ES-335 Prototype
Epiphone Tripp Eisen ES-335 Prototype
  • 2002
  • Only two guitars made

Body:

  • Laminated Maple body
  • Semi-hollow construction
  • No f-holes

Neck:

  • Set maple neck
  • Rosewood fingerboard with no inlays
  • Block inlay at 12th fret
  • Black headstock with "Static-X" logo
  • 2-ply truss rod cover with "It's A Tripp" engraving
  • 24.75" scale
  • 1.68" nut width

Binding:

  • Black body & neck binding

Electronics:

  • EMG-HZ humbucker pickups
  • 1 Vol. 1 Tone controls
  • 3-way selector switch

Hardware:

  • Black hardware
  • TP-6 fine-tuning tailpiece with locknut
  • Black speed knobs

Colors:

  • Ebony (EB)
  • Alpine White (AW)

See Also:

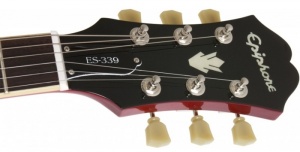

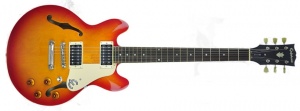

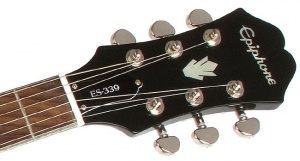

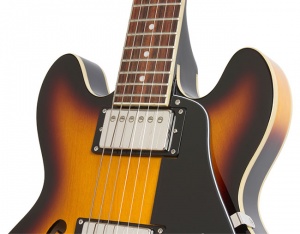

ES-339

ES-339

Epiphone ES-339
Epiphone ES-339
Epiphone ES-339
Epiphone ES-339
  • 2011

Body:

  • Reduced body size
  • Laminated Maple body
  • Solid center block

Neck:

  • Set Mahogany neck with SlimTaper "D" profile
  • Rosewood fingerboard with dot inlays
  • 12" fingerboard radius
  • 22 medium-jumbo frets
  • Elongated headstock with deco oval inlay
  • 1.68" nut width
  • 24.75" scale

Binding:

  • 1-ply body & neck

Electronics:

  • ProBucker 2 & 3 pickups
  • Neck Pickup Volume with push/pull coil-tapping
  • Bridge Pickup Volume with push/pull coil-tapping
  • Neck Pickup Tone
  • Bridge Pickup Tone
  • 3-way selector switch

Hardware:

  • Nickel hardware
  • Wilkinson 14:1 ratio vintage tuners with Tombstone buttons
  • LockTone Tune-o-matic bridge with LockTone Stopbar
  • Elevated black pickguard
  • Black reflector knobs

Colors:

  • Natural (NA)
  • Cherry (CH)
  • Ebony (EB)
  • Vintage Sunburst (VS)


ES-339 PRO

Epiphone ES-339
Epiphone ES-339 Pro
Epiphone ES-339
Epiphone ES-339 Pro
  • 2012

Body:

  • Reduced body size
  • Laminated Maple body
  • Solid center block

Neck:

  • Set Mahogany neck with SlimTaper "D" profile
  • Rosewood fingerboard with dot inlays
  • 12" fingerboard radius
  • 22 medium-jumbo frets
  • Elongated headstock with deco oval inlay
  • 1.68" nut width
  • 24.75" scale

Binding:

  • 1-ply body & neck

Electronics:

  • Alnico Classic Pro & Pro Plus humbucker pickups
  • Neck Pickup Volume with push/pull coil-tapping
  • Bridge Pickup Volume with push/pull coil-tapping
  • Neck Pickup Tone
  • Bridge Pickup Tone
  • 3-way selector switch

Hardware:

  • Nickel hardware
  • 14:1 ratio Grover Kidney tuner
  • LockTone Tune-o-matic bridge with LockTone Stopbar
  • Black reflector knobs
  • Elevated black pickguard

Colors:


ES-339 PRO Black Royale

Epiphone Black Royale
Epiphone ES-339 PRO Black Royale
Epiphone Black Royale
Epiphone ES-339 PRO Black Royale
Epiphone Black Royale
Epiphone ES-339 PRO Black Royale
  • 2012-Current

Body:

  • Semi-hollow body construction
  • Laminated Maple Body & Sides

Neck:

  • Set mahogany neck with 60's SlimTaper profile
  • Rosewood Fingerboard with pearloid Dot inlays
  • 22 Medium-Jumbo frets
  • 12" fingerboard radius
  • Sloped Dovewing Headstock with pearloid pineapple inlay
  • 24.75" scale length
  • 1.68" nut width

Binding:

  • Single-ply Silver-Sparkle body & neck binding

Electronics:

  • 2 Alnico Classic PRO humbucker pickups
  • 2 Vol. 2 Tone controls
  • Vol. controls with push/pull coil tapping
  • 3-way switch

Hardware:

  • Nickel Hardware
  • LockTone Tune-o-matic bridge with stopbar tailpiece
  • 14:1 ratio Grover Kidney tuners
  • TopHat knobs with metal inserts

Colors:

  • Black Pearl (BP)

See Also:


ES-339 Ultra

Epiphone ES-339
Epiphone ES-339 Ultra
Epiphone ES-339
Epiphone ES-339 Ultra
Epiphone ES-339 Ultra Pickup Controls Epiphone ES-339 Ultra Nano Controls
Epiphone ES-339 Ultra Pickup Controls
Epiphone ES-339 Ultra Nano Controls
Epiphone ES-339 Ultra Nanomag Pickup Epiphone ES-339 Ultra Chromatic Tuner
Epiphone ES-339 Ultra Nanomag Pickup
Epiphone ES-339 Ultra Chromatic Tuner
Epiphone ES-339

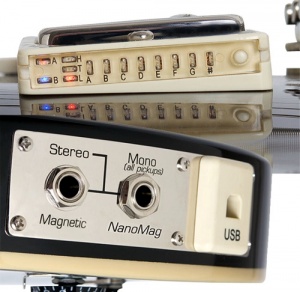

Epiphone ES-339 Ultra Output Jack & Chromatic Tuner
  • 2011-2012

Body:

  • Reduced body size
  • Laminated Maple body
  • Solid center block

Neck:

  • Set Mahogany neck with SlimTaper "D" profile
  • Rosewood fingerboard with dot inlays

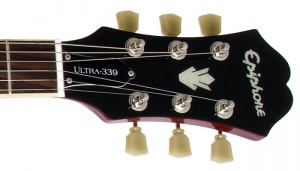

  • Elongated headstock with deco oval inlay
  • 12" fingerboard radius
  • 22 medium-jumbo frets
  • 1.68" nut width
  • 24.75" scale

Binding:

  • 1-ply body & neck

Electronics:

  • Epiphone ProBucker 2 & 3 pickups
  • Shadow NanoMag Humbucking Low-Impedance fingerboard pickup

Front Controls:

  • 3-way Pickup Selector
  • Neck Pickup Volume
  • Bridge Pickup Volume
  • NanoMag Pickup Volume with push-push A/B switch
  • Master Tone
  • A/B LED Indicators

Back Controls:

  • NanoMag Gain
  • NanoMag™ Treble EQ
  • NanoMag™ Bass EQ

Chromatic Tuner:

  • On/Off Switch
  • A-G LED Note Indicators
  • # LED Indicator
  • High Pitch, Low Pitch, In-Tune LED Indicators

Outputs:

  • 1/4" Mono (both signals blended)
  • 1/4" Stereo
  • USB (Computer supplies power to Ultra-III when connected)

Hardware:

  • Nickel hardware
  • Wilkinson 14:1 ratio vintage tuners with Tombstone buttons
  • LockTone Tune-o-matic bridge with LockTone Stopbar
  • Evelated black pickguard
  • Black reflector knobs

Colors:

  • Antique Natural (AN)
  • Cherry (CH)
  • Ebony (EB)
  • Vintage Sunburst (VS)
  • Pelham Blue (PE)

Includes:

  • Native Instruments™ GuitarRig™ Software (download)
  • 3 meter USB Cable
  • 9 Volt battery
  • User's Manual
  • Bumper Sticker
  • Poster
  • Trussrod Wrench
  • 10' Economy 1/4" cord


ES-339 P90 PRO

Epiphone ES-339
Epiphone ES-339 P90 Pro
Epiphone ES-339
Epiphone ES-339 P90 Pro
  • 2014

Body:

  • Reduced body size
  • Laminated Maple body
  • Solid center block

Neck:

  • Set Mahogany neck with SlimTaper "D" profile
  • Rosewood fingerboard with dot inlays
  • 12" fingerboard radius
  • 22 medium-jumbo frets
  • Elongated headstock with deco oval inlay
  • 1.68" nut width
  • 24.75" scale

Binding:

  • 1-ply body & neck

Electronics:

  • Epiphone P90R PRO & P90T PRO pickups
  • Neck Pickup Volume with push/pull coil-tapping
  • Bridge Pickup Volume with push/pull coil-tapping
  • Neck Pickup Tone
  • Bridge Pickup Tone
  • 3-way selector switch

Hardware:

  • Nickel hardware
  • Wilkinson 14:1 ratio vintage tuners with Tombstone buttons
  • LockTone Tune-o-matic bridge with LockTone Stopbar
  • Black reflector knobs
  • Elevated black pickguard

Colors:

  • Natural (NA)
  • Cherry (CH)
  • Ebony (EB)
  • Vintage Sunburst (VS)
  • Wine Red (WR)
  • Pelham Blue (PE)


ES-339 (CDM)

Epiphone ES-339
Epiphone ES-339 (CDM)
Epiphone ES-339
Epiphone ES-339 (CDM)
  • 2011
  • Chinese Domestic Market only

Body:

  • Reduced body size
  • Laminated Maple body
  • Solid center block

Neck:

  • Set Mahogany neck
  • Rosewood fingerboard with dot inlays
  • 12" fingerboard radius
  • 22 medium-jumbo frets
  • Open-book headstock with crown inlay
  • 1.68" nut width
  • 24.75" scale

Binding:

  • 1-ply body & neck

Electronics:

  • 2 open-coil ceramic humbucker pickups with no baseplate
  • 2 Vol. 2 Tone controls
  • 3-way selector switch

Hardware:

  • Chrome hardware
  • Vintage-style deluxe tuners
  • LockTone Tune-o-matic bridge with LockTone Stopbar
  • Elevated cream pickguard
  • Amber bell knobs

Colors:

  • Heritage Cherry Sunburst (HS)

See Also: Chinese Domestic Market Epiphones




ES-345 & 355

ES-345

Epiphone ES-345
Epiphone ES-345
Epiphone ES-345
Epiphone ES-345
Epiphone ES-345
Epiphone ES-345
  • 2011

Body:

  • Laminated Maple body

Neck:

  • Set Mahogany neck with 1960's SlimTaper "D" profile
  • Rosewood fingerboard with mother-of-pearl Parallelogram inlays
  • Bell Shaped 2-layer trussrod cover with "STEREO" in white
  • 12" fingerboard radius
  • 22 medium-jumbo frets
  • 1.68" nut width
  • 24.75" scale

Binding:

  • 1-ply body, pickguard & neck

Electronics:

  • Alnico Classic humbuckers
  • 2 Vol. 2 Tone controls
  • 3-way pickup selector switch
  • 6-position rotary Varitone notch filter

VariTone:

  • Position-1: Bypass
  • Position-2: 5db at 1950hz
  • Position-3: 12db at 1100hz
  • Position-4: 16db at 620 hz
  • Position-5: 18.5db at 360hz
  • Position-6: 21db at 120hz

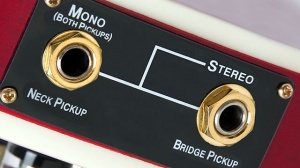

Outputs:

  • Mono - Both pickups 1/4"
  • Stereo - Two 1/4" outputs (Neck & Bridge Pickups)

Hardware:

  • Gold hardware
  • Wilkinson 14:1 ratio vintage tuners with tulip buttons
  • LockTone Tune-o-matic bridge with LockTone Stopbar
  • Black pickguard (unattached)
  • Black reflector knobs with metal pointers

Colors:

  • Alpine White (AW)
  • Cherry (CH)
  • Ebony (EB)


ES-355

Epiphone ES-355
Epiphone ES-355
Epiphone ES-355
Epiphone ES-355
  • 2011-2012

Body:

  • Laminated Maple body

Neck:

  • Set hard maple neck with 1960's SlimTaper "D" profile
  • Ebony fingerboard with mother-of-pearl block inlays
  • Mother of pearl split-diamond inlay on headstock
  • 12" fingerboard radius
  • 22 medium-jumbo frets
  • 1.68" nut width
  • 24.75" scale

Binding:

  • 5-ply body & headstock
  • 1-ply neck

Electronics:

  • Alnico Classic & Classic Plus humbucker pickups
  • 2 Vol. 2 Tone controls
  • 3-way selector switch

Hardware:

  • Gold hardware
  • Grover 14:1 ratio tuners
  • LockTone Tune-o-matic bridge with Bigsby tremolo
  • Imitation "Tortoise" pickguard with multi-binding (unattached)
  • Black Speed Knobs with pointers

Colors:


B.B. King Lucille (ES-355 Variation)

Epiphone Lucille
Epiphone Lucille
Epiphone Lucille
Epiphone Lucille Headstock
alttextL alttextR
Epiphone Lucille Varitone Controls
Epiphone Lucille TP-6 Bridge
  • 1996-Current

Body:

  • Laminated Maple body

Neck:

  • Set Maple neck with SlimTaper "C" profile
  • Rosewood fingerboard with block inlays
  • Gold truss rod cover with "B.B. King" engraving
  • Elongated headstock with pearl "Lucille" inlay
  • 12" fingerboard radius
  • 22 medium-jumbo frets
  • 24.75" scale
  • 1.68" nut width

Binding:

  • 5-ply body & headstock
  • 4-ply pickguard binding
  • Single-ply neck

Electronics:

  • Alnico Classic humbuckers
  • 2 Vol. 2 Tone controls
  • 3-way selector switch
  • 6-way Vari-Tone switch

Vari-Tone Controls:

  • Position 1: Bypass
  • Position 2: 5db at 1950hz
  • Position 3: 12db at 1100hz
  • Position 4: 16db at 620hz
  • Position 5: 18.5db at 360hz
  • Position 6: 6.21db at 120h

Hardware:

  • TP-6 fine-tuning tailpiece
  • Elevated tortoise pickguard with metal "E" emblem
  • Gold hardware
  • Grover die-cast tuners
  • Stereo/mono output jacks

Colors:

  • Ebony (EB)


Electrics | Archtops | Acoustics | Basses | Bluegrass | Amplifiers | Promotional Guitars

other guitar wikis
