EC-Series

Contents 1 1953-1970 1.1 EC-30 Madrid 1.2 EC-90 Entrada 1.3 EC-100 Seville 1.4 EC-150 Classic 1.5 EC-200 Espana 1.6 EC-300 Barcelone 2 1971-1978 2.1 EC-15 2.2 EC-20 2.3 EC-22 2.4 EC-23 2.5 EC-24 2.6 EC-25 3 1995-1999 3.1 EC-100 4 1999-2003 4.1 EC60 Granada 4.2 EC70 Classica 4.3 EC6C Valencia CE 4.4 EC7C Barcelona CE

1953-1970

---

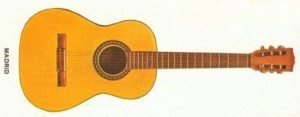

EC-30 Madrid

• 1962-1969
• Model EC30

Body:

• 2-piece spruce top
• 2-piece mahogany back and sides
• No fan bracing or binding
• 14.25" body width
• 4.5" body depth

Neck:

• Set mahogany neck with no french heel
• Rosewood fingerboard with no inlays
• Slotted headstock with plate-mounted tuners
• 25.5" scale

Binding:

• Ornate rosette marquetry

Hardware:

• Nickel hardware
• Pearloid tuner buttons

Colors:

• Natural

---

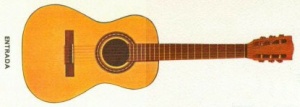

EC-90 Entrada

• 1963-1969
• Model EC90

Body:

• Spruce top
• Mahogany back and sides
• Fan bracing

Neck:

• No french heel
• 25.5" scale

Binding:

• No binding

Hardware:

• Nickel hardware
• Pearloid tuner buttons

Colors:

• Natural

---

EC-100 Seville

• 1961-1970
• Model EC100/E

Body:

• Spruce top
• Mahogany back and sides
• Fan bracing
• 14.25" body width
• 4.5" body depth

Neck:

• Set one-piece mahogany neck with french heel
• 25.5" scale

Binding:

• No binding

Electronics:

• Ceramic pickup (EC100E)

Hardware:

• Nickel hardware
• Rosewood bridge
• Engraved plate-mounted tuners
• Pearloid tuner buttons

Colors:

• Natural

See Also: Epi-Series EC-100

---

EC-150 Classic

• 1963-1970
• Model EC150

Body:

• Spruce top with ornate rosette
• Mahogany back and sides
• Fan bracing
• 14.25" body width
• 4" body depth

Neck:

• Set mahogany neck
• Rosewood fingerboard with no inlays
• Slotted headstock with rosewood veneer
• 25.5" scale

Binding:

• Tortoise shell body binding

Hardware:

• Nickel hardware
• Rosewood bridge
• Plate-mounted tuners with pearloid buttons

Colors:

• Natural

---

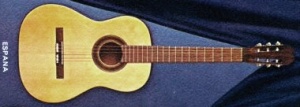

EC-200 Espana

• 1962-1968
• Model EC200

Body:

• 2-piece spruce top
• Maple back and sides
• Fan bracing
• 14.25" body width
• 4" body depth

Neck:

• Set 1-piece mahogany neck with french heel
• Rosewood fingerboard with no inlays
• Slotted headstock with rosewood veneer
• 25.5" scale

Binding:

• Inlaid rosette pufling rings
• Black body binding

Hardware:

• Nickel hardware
• Rosewood bridge with bone saddle
• Engraved plate-mounted tuners
• Large string posts with pearloid buttons

Colors:

• Natural

---

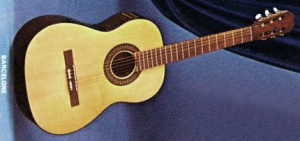

EC-300 Barcelone

• 1963-1968
• Model EC300

Body:

• Spruce top with ornate rosette
• Curly maple back and sides
• Fan bracing
• 14.25" body width
• 4" body depth

Neck:

• Set mahogany neck with french heel
• Rosewood fingerboard with no inlays
• Slotted headstock with rosewood veneer
• 25.5" scale

Binding:

• Black body binding

Hardware:

• Gold hardware
• Rosewood bridge
• Plate-mounted tuners with pearloid buttons

Colors:

• Natural

1971-1978

---

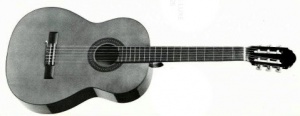

EC-15

• 1976-1979
• Model EC15

Body:

• Full size classic body style
• Spruce slim top
• Veneered mahogany back & sides
• 14.75" lower bout
• 3.875" body depth

Neck:

• Rosewood fingerboard with no inlays
• Slotted headstock with rosewood overlay
• 19 nickel/silver frets
• 25.5" scale
• 2" nut width

Binding:

• Decorative sound hole rosette
• Painted on body binding

Hardware:

• Rosewood bridge
• Scolled plate tuners with round buttons

Colors:

• Natural

---

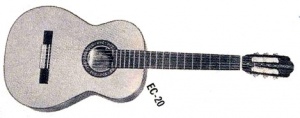

EC-20

• 1971-1977
• Model EC20

Body:

• Laminated spruce top
• Rosewood back and sides (early models)
• Mahogany back and sides (later models)
• 13.875" body width
• 3.75" body depth

Neck:

• Set mahogany neck with french heel
• Rosewood fingerboard with no inlays
• Nickel-silver frets
• 25.625" scale
• 2.0" nut width

Binding:

• Decorative purfling and inlay work

Hardware:

• Scrolled gold-plated machine heads with Ivroid buttons
• Rosewood bridge.

Colors:

• Natural

---

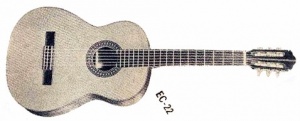

EC-22

• 1972-1974
• Model EC22

Body:

• Spruce top
• Rosewood back & sides

Neck:

• Set mahogany neck
• Rosewood fingerboard with no inlays
• Nickel-silver frets

Binding:

• Celluloid binding
• Center line back inlay

Hardware:

• Rosewood bridge
• Scrolled gold-plated machine heads with Ivroid buttons

Colors:

• Natural

---

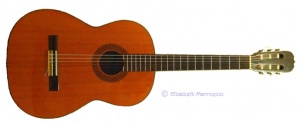

EC-23

• 1973
• Model EC23

Body:

• Spruce top

Neck:

• Student-sized set mahogany neck
• Rosewood fingerboard with no inlays
• Slotted headstock with rosewood veneer

Binding:

• Ornate rosette

Hardware:

• Rosewood bridge with ornate marquetry
• Plate-mounter tuners with plastic buttons

Colors:

• Natural

---

EC-24

• 1972-1974
• Model EC24
• $169.50 MSRP

Body:

• Cedar top
• Rosewood back and sides

Neck:

• Mahogany neck
• Rosewood fingerboard
• Nickel-silver frets

Binding:

• Headpiece Marquetry
• Deluxe Center line back inlay

Hardware:

• Rosewood bridge
• Scrolled chrome or gold-plated machine heads with Ivroid buttons

Colors:

• Natural

---

EC-25

• 1970-1977
• Model EC25

Body:

• Cedar top
• Rosewood back & sides
• 14.75" body width
• 3.875" body depth

Neck:

• Mahogany neck
• Ebony fingerboard with no inlays
• Rosewood veneered headpiece
• 19 nickel-silver frets
• 25.625" scale

Binding:

• Rosewood finished celluloid binding
• Mahogany marquetry sound-hole rings

Hardware:

• Scrolled gold-plated machine heads with Ivroid buttons
• Rosewood bridge with inlaid celluloid marquetry

Colors:

• Natural finish

1995-1999

---

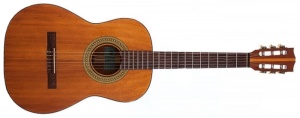

EC-100

• 1995-1999
• Model EC-100
• $189 MSRP

Body:

• Laminated spruce top
• Laminated mahogany back and sides

Neck:

• Set mahogany neck
• Rosewood fingerboard with no inlays
• Rosewood veneered headstock
• 25.5" scale
• 2.0" nut width

Binding:

• Black body binding
• Decorative rosette marquetry

Hardware:

• Chrome hardware
• Chrome plate-mounted machine heads
• White plastic bridge saddle

Colors:

• Natural (NA) Matte

See also: Epi-Series Acoustics

1999-2003

---

EC60 Granada

• 1999-2001
• Model EC60

Body:

• Select spruce top
• Mahogany back & sides
• Hand-scalloped fan bracing

Neck

• Set mahogany neck
• Rosewood fingerboard with no inlays
• Slotted headstock
• 25.5" scale
• 2" nut width

Binding:

• Single-ply black body binding
• Ornate sound hole marquetry

Hardware:

• Gold hardware
• Plate-mounted tuners
• Rosewood bridge

Colors:

• Antique Natural (AN)

---

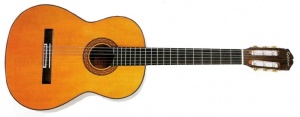

EC70 Classica

• 1999-2000
• Model EC70

Body:

• Solid spruce top
• Rosewood body
• Hand-scalloped fan bracing

Neck:

• Set Mahogany neck
• Rosewood fingerboard with no inlays
• Slotted headstock
• 25.5" scale
• 2" nut width

Binding:

• Single-ply black body binding
• Ornate sound hole marquetry

Hardware:

• Gold hardware
• Plate-mounted tuners
• Rosewood bridge

Colors:

• Antique Natural (AN)

---

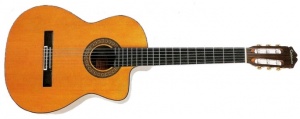

EC6C Valencia CE

• 1999-2003
• Model EC6C

Body:

• Select spruce top
• Mahogany back and sides
• Hand-scalloped fan bracing

Neck:

• Set mahogany neck
• Rosewood fingerboard with no inlays
• Slotted headstock
• 25.5" scale
• 2" nut width

Binding:

• Single-ply black body binding
• Ornate sound hole marquetry

Electronics:

• Piezo Pickup
• USA Epiphonic VI Pre-amp & EQ

Hardware:

• Gold hardware
• Plate-mounted tuners
• Rosewood bridge

Colors:

• Natural (NA)

---

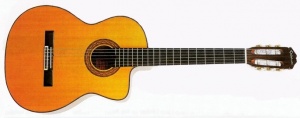

EC7C Barcelona CE

• 1999-2000
• Model EC7C

Body:

• Solid spruce top
• Rosewood back and sides
• Hand-scalloped fan bracing

Neck:

• Set mahogany neck
• Rosewood fingerboard with no inlays
• Slotted headstock
• 25.5" scale
• 2" nut width

Binding:

• Single-ply black body binding
• Ornate sound hole marquetry

Electronics:

• Piezo Pickup
• USA Epiphonic VI Pre-amp & EQ

Hardware:

• Gold hardware
• Plate-mounted tuners
• Rosewood bridge

Colors:

• Natural (NA)

---
