The Epiphone Les Paul Studio was introduced in 1998 and came with trapezoid inlays until 2004, when Epiphone switched over to dot fingerboard inlays. The Les Paul Studio is Epiphone's entry level set-neck, carved top Les Paul with the same basic construction as the Les Paul Standadrd, but without the nicer appointments like neck and body binding. The Epiphone Les Paul Studio has been produced in several varieties including Deluxe, 7-String and Goth models. |
Models

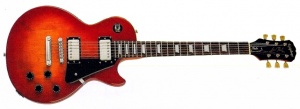

Les Paul Studio
- 1998-Current
Body:
- Mahogany body
- Carved top
Neck:
- Set mahogany neck with SlimTaper profile
- Rosewood fingerboard
- Trapezoid fingerboard inlays (1998-2003)
- Dot fingerboard inlays (2004-Current)
- 12" fingerboard radius
- 22 frets
- 24.75" scale
- 1.68" nut width
Electronics:
- Alnico Classic humbucker pickups
- Covered pickups (1998-2003)
- Uncovered pickups (2004-Current)
- 2 Vol. 2 Tone controls
- 3-way selector switch
Hardware:
- Chrome hardware
- LockTone Tune-O-Matic bridge with stopbar tailpiece
- Black speed knobs
- Elevated black pickguard
- Epiphone vintage-style green key tuners (1998-2002)
- Grover Rotomatic die-cast tuners (2002-Current)
Colors:
- Ebony
- Ebony & Pearloid
- Arctic Blue
- Worn Brown
- Worn Cherry
- Heritage Cherry Sunburst
- Vintage Sunburst
- Alpine White
- Trans Blueburst
- Pelham Blue
- Pewter
- Turquoise

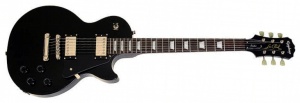

Les Paul Studio Deluxe
|
| |
| Epiphone Les Paul Studio Deluxe in Wine Red
|
Epiphone Les Paul Studio Deluxe in Arctic Blue
|
Body:
- Mahogany body
- Carved top
Neck:
- Set mahogany neck with SlimTaper profile
- Rosewood fingerboard with trapezoid inlays
- 12" fingerboard radius
- 22 frets
- 24.75" scale
- 1.68" nut width
Electronics:
- Alnico Classic Plus humbucker pickups
- 2 Vol. 2 Tone controls
- 3-way selector switch
Hardware:
- Gold or Nickel hardware
- LockTone Tune-O-Matic bridge with stopbar tailpiece
- Vintage-style Kluson tuners
- Black speed knobs
- Elevated black pickguard
Colors:
- Alpine White (AW)
- Wine Red (WR)
- Ebony (EB)
- Arctic Blue (AB)
- Metallic Gold (MG)
- Silverburst (SB)
Les Paul Studio Walnut
Body:
- Walnut body
Neck:
- Set walnut neck with SlimTaper profile
- Rosewood fingerboard with dot inlays
- Synthetic bone nut
- 22 frets
- 24.75" scale
- 1.68" nut width
Electronics:
- Open Coil Alnico Classic humbuckers
- 2 Vol. 2 Tone controls
- 3-way selector switch
Hardware:
- Chrome hardware
- LockTone Tune-O-Matic bridge with stopbar tailpiece
- Grover diecast tuners
- Black speed knobs
- Elevated black pickguard
Colors:
- Walnut (WL)
Les Paul Studio Chameleon
- 2007
Body:
- Mahogany body
Neck:
- Set Mahogany neck
- Rosewood fingerboard with dot inlays
- 24.75" scale
- 1.68" nut width
Electronics:
- Open Coil Alnico Classic humbuckers
- 2 Vol. 2 Tone controls
- 3-way selector switch
Hardware:
- Chrome hardware
- LockTone Tune-O-Matic bridge with stopbar tailpiece
- Grover diecast tuners
- Black speed knobs
- No pickguard
Colors:
- Blue/Green (BG)
- Bronze/Salmon (BS)
- Silver/Lime (SL)

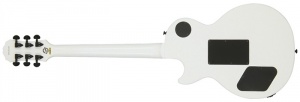

Les Paul Studio with Floyd Rose Tremolo
Body:
- Mahogany body
Neck:
- Set mahogany neck with SlimTaper profile
- Rosewood fingerboard with dot inlays
- Floyd Rose Special Tremolo with R4 locking nut
- 12" fingerboard radius
- 22 frets
- 24.75" Scale
- 1.68" nut width
Electronics:
- Open Coil Alnico Classic humbuckers
- 2 Vol. with push/pull coil splitting
- 2 Tone controls
- 3-way selector switch
Hardware:
- Black hardware
- Elevated black pickguard
- Black speed knobs
- Grover 14:1 ratio tuners
Colors:
- Alpine White (AW)

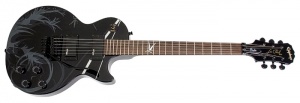

Les Paul Studio Midnight Vine
- 2011
Body:
- No carved top - flat
- Mahogany body
- Custom Midnight Vine graphics
Neck:
- Set hard maple neck with SlimTaper "D" profile
- Satin finish
- Rosewood fingerboard with 12th fret inlay only
- Custom abalone "Midnight Vine" inlay at the 12th fret
- Floyd Rose Special Tremolo with R4 locking nut
- 12" fingerboard radius
- 22 frets
- 24.75" Scale
- 1.68" nut width
Electronics:
- Epi-Active T & Epi-Active R pickups
- 2 Vol. with push/pull coil splitting
- 2 Tone controls
- 3-way selector switch
Hardware:
- Black hardware
- No pickguard
- Black speed knobs
- Grover 14:1 ratio tuners
Colors:
- Ebony (EB)
See Also:
Les Paul Nightfall
|
| |
| Epiphone Les Paul Nightfall
|
Epiphone Les Paul Nightfall
|
- 2010-2012
Body:
- Mahogany body
Neck:
- Set hard maple neck with SpeedTaper "D" profile
- Satin finish
- Ebony or Rosewood fingerboard with 12th fret inlay only
- Custom abalone deco diamond inlay at the 12th fret
- Floyd Rose Special Tremolo with R4 locking nut
- 12" fingerboard radius
- 22 frets
- 24.75" Scale
- 1.68" nut width
Electronics:
- EMG HZ-4 & HZ-4A
- 2 Vol. with push/pull coil splitting
- 2 Tone controls
- 3-way selector switch
Hardware:
- Black hardware
- No pickguard
- Black speed knobs
- Grover 14:1 ratio tuners
Colors:
- Ebony (EB)
Goth Les Paul Studio
- 2002-Current
Body:
- Mahogany body
Neck:
- Set Mahogany neck
- Satin black headstock with "Gothic Cross" design
- Rosewood fingerboard with an "XII" inlay at the 12th fret
- 24.75" Scale
- 1.68" nut width
Electronics:
- Open-coil Alnico Classic humbuckers
- 2 Vol. 2 Tone controls
- 3-way toggle switch
Hardware:
- Black hardware
- Tune-o-matic bridge with stopbar tailpiece
- Optional Floyd Rose lic. tremolo
- Black pickguard
- Black speed knobs
Colors:
- Pitch Black (PB) satin
See Also:
Goth Les Paul Studio 7-String
Body:
- Mahogany body
Neck:
- Set Mahogany neck
- Rosewood fingerboard with dot inlays
- 24.75" Scale
- 1.96" nut width
Electronics:
- Open-coil Alnico Classic humbuckers
- 2 Vol. 2 Tone controls
- 3-way selector switch
Hardware:
- Black hardware
- Tune-o-matic bridge with stopbar tailpiece
- Optional Floyd Rose lic. tremolo
- Black pickguard
- Black speed knobs
Colors:
- Pitch Black (PB) satin
See Also:

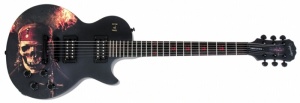

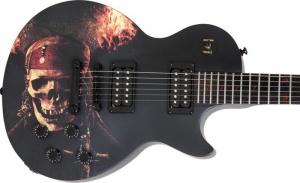

Pirates of the Caribbean Les Paul
|
| |
| Les Paul Pirates of the Carribean
|
Les Paul Pirates of the Carribean
|
Body:
- Mahogany body
- Carved top
- Pirates of the Caribbean graphics
Neck:
- Set mahogany neck
- Rosewood fingerboard with red Skull and crossed sword inlays
- Captain Jack Sparrow voodoo doll image on headstock
- "A Pirate's Life for Me" inscription on truss rod cover
- 24.75" scale
- 1.68" nut width
Electronics:
- Dual open-coil Alnico Classic humbuckers
- 2 Vol. 2 Tone controls
- 3-way selector switch
Hardware:
- Black hardware
- LockTone Tune-O-Matic bridge and stopbar tailpiece
- No pickguard
- Black speed knobs
- Grover diecast tuners
Colors:
- Black (BK) matte
See Also:

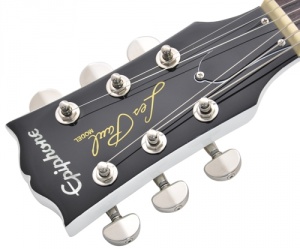

Les Paul Studio (Chinese Domestic Market)
- 2011
- Chinese Domestic Market only
Body:
- Mahogany body with flat top
Neck:
- Set Mahogany neck
- Rosewood fingerboard with dot inlays
- Open-book headstock with gold Les Paul script
- 2-ply 3-screw truss rod cover
- 24.75" scale
- 1.68" nut width
Electronics:
- 2 open-coil ceramic humbucker pickups with no baseplate
- 2 Vol. 2 Tone controls
- 3-way box-type selector switch
Hardware:
- Chrome hardware
- Generic die-cast tuners
- LockTone Tune-O-Matic bridge with stopbar tailpiece
- White pickguard, Pickup rings & toggle ring
- Black speed knobs
Colors:
- Alpine White (AW)
See Also:
